Product parameters
Generator set specifications
| Minimum rating | 1350 kVA / 1080 kW |
| Maximum rating | 1500 kVA / 1200 kW |
| Emissions / fuel strategy | Fuel optimized |
| 50 Hz prime rating | 1350 kVA / 1080 kW |
| 50 Hz standby rating | 1500 kVA / 1200 kW |
| 60 Hz prime rating | 1350 kVA / 1080 kW |
| 60 Hz standby rating | 1500 kVA / 1200 kW |
| Frequency | 50/60 Hz |
| Speed | 1500/1800 RPM |
| Voltage | 220–415 V |
Engine specifications
| Engine model | Perkins® 4012-46TWG3A |
| Bore | 160 mm (6.3 in) |
| Stroke | 190 mm (7.5 in) |
| Governor type | Electronic |
| Displacement | 45.8 L (2797.5 cu. in) |
| Compression ratio | 13.0:1 |
Overview

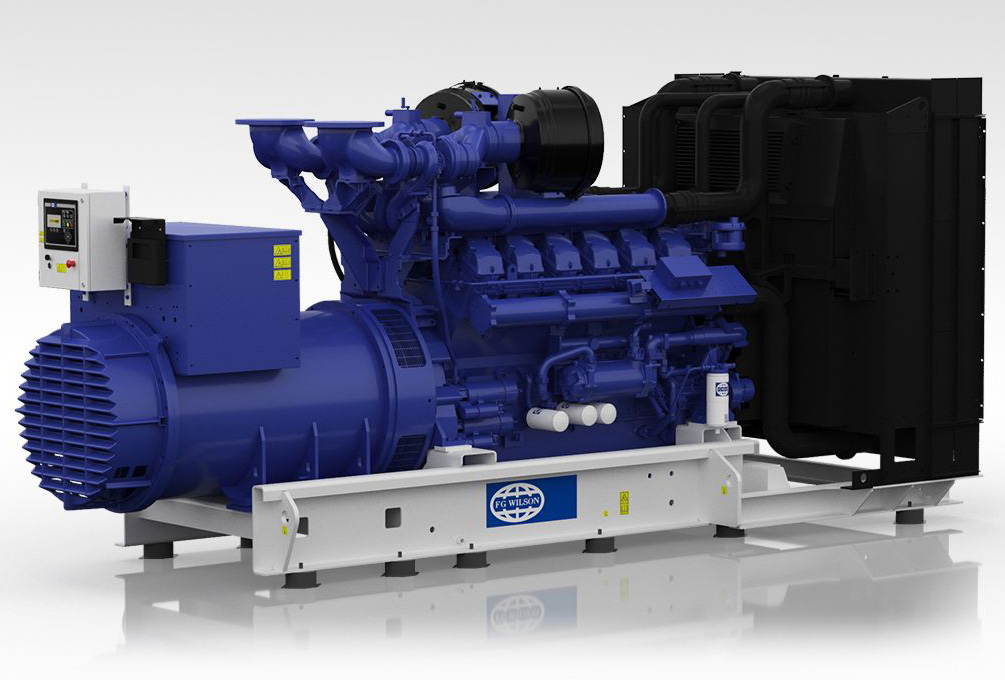

The P1500-1 is part of the FG Wilson Large Series, covering 800 kVA and above. Designed for heavy industrial, data center and utility applications, these generator sets combine Perkins 4000 Series engines with heavy-duty alternators and advanced control systems for reliable prime and standby power.
Key benefits
- Perkins 4000 Series engines – high output with proven reliability.
- Heavy-duty alternators – designed for continuous duty and demanding motor starting.
- Global product support – manufactured in Northern Ireland, Brazil, China and India.
Standard equipment
Engine
- Air filter
- Lubricating oil drain valve
- Engine filled with lubricating oil
- High coolant temperature shutdown
- Low oil pressure shutdown
Cooling
- Radiator mounted on the assembly
- Radiator and cooling fan
- Coolant drain valve
- Fan, fan drive and battery charging alternator drive fully compliant with the EC Machinery Directive
- Cooling system filled with coolant mixture
Exhaust
- Flanged exhaust outlet
- Exhaust stub pipe and gasket
Fuel
- 8-hour fuel tank or skid base
- Fuel connections for local and remote fill
Alternator
- FG Wilson FGL alternator
- Shunt excitation
- IP23 protection
Control panel
- FG100
Mounting
- Steel base frame with skid base or single-wall fuel tank
- Certified base lifting eyes and rear towing eyelets
- Anti-vibration mounts
- Battery tray and cables
Optional equipment
Exhaust
- Industrial, residential and critical application silencers
Alternator
- Leroy Somer alternator
- Quadrature droop kit
- Anti-condensation heater and panel circuit
Control panel
- DSE4520
- DSE7320
- DSE7410
- Deep Sea DSE7420
Starting / charging
- Lead-acid battery (dry)
General
- CE-certified generator set upgrade
- EEC declaration of conformity
- Narrow base, wide base or skid base
- Sound-attenuated steel or galvanized canopy
- Double-wall fuel tank
Enclosure
- Compliant with EC Directive 2000/14/EC
- Super-silent performance for residential areas
- Fully enclosed exhaust silencing system
- Robust, highly corrosion-resistant construction
